Solar Panel 100W/150W/200W

Description

Sinfosolar 12 Volt Solar Panel 100w,150w,200 Watt High-Efficiency Monocrystalline Module PV Charger for RV Battery Boat Caravan and Other Off-Grid Applications

Main Features:
-Reliable Power Output: Sinfosolar’s 150W monocrystalline solar panel using Grade A solar cell and the energy efficiency rating is about 22%.
-Efficient Performance: Bypass diodes protect the solar cells from overheating and allow the solar panel to continue working during accidental shading by bypassing the underperforming cells.
-Industry-Leading Technology:This Sinfosolar 150W 12V Monocrystalline Panel is made from high purity silicon cells coated with advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide long-lasting durability.
-Built to Last:Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP65 rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

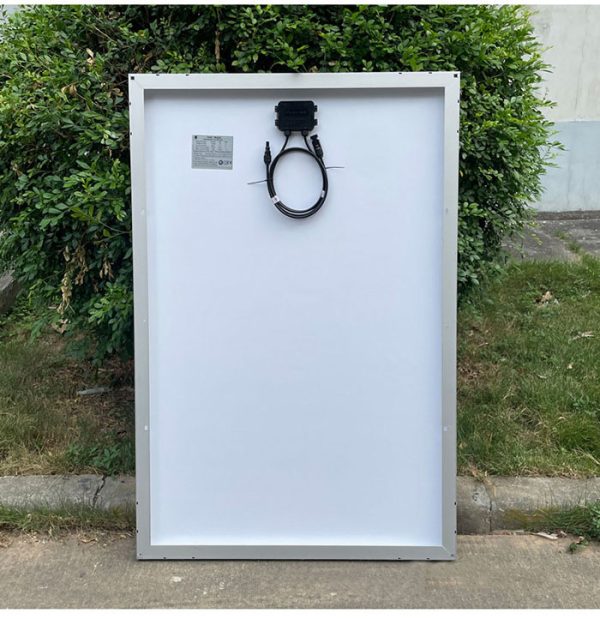

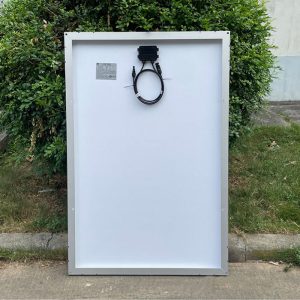

-Fast and Easy Installation: Pre-drilled holes on the back of the panel allow for fast mounting and securing, ideal for off-grid applications including RVs, rooftops, cabins, yachts, and more. They are directly compatible with our ground mounts, Z Brackets, Corner Brackets.

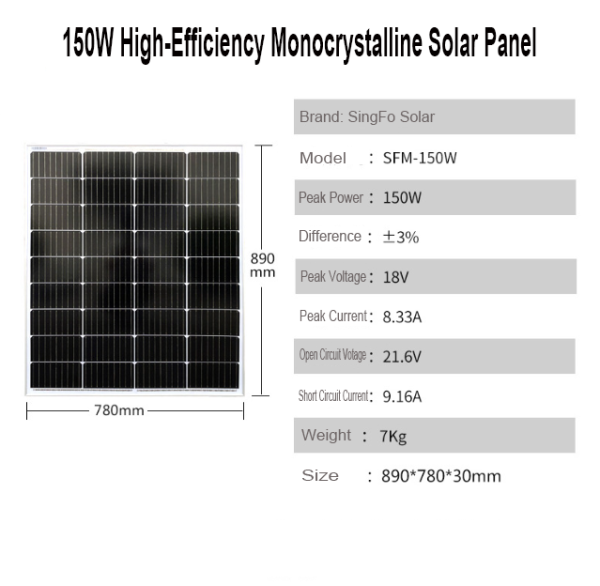

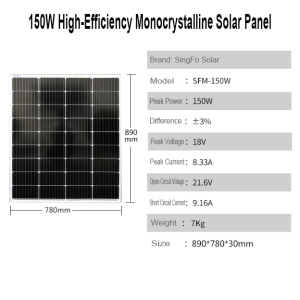

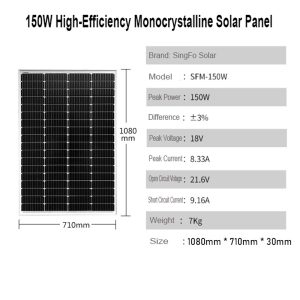

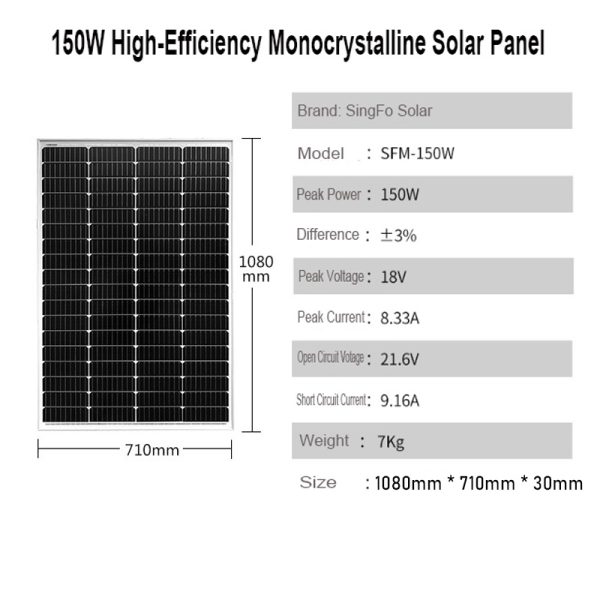

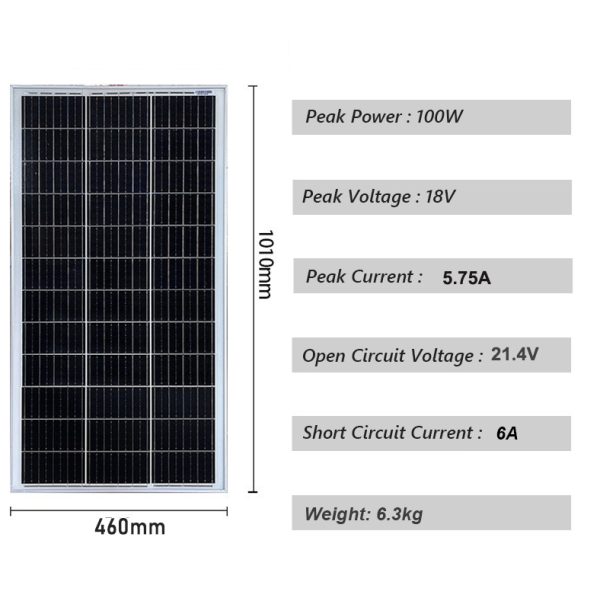

Specification:
Reted Maximum Power(Pm): 100W/150W/200W
Current at Pmax(Imp): 5.56A/8.33A/11.11A
Voltage at Pmax(Vmp): 18V
Open-Circuit Voltage(Voc): 21.6V
Short-Circuit Current(Isc): 6.11A/ 9.16A/12.22A
Size: 1025x541x 30mm(100w)/890x780x30mm(150w)/1170X780X35mm(200w)
Weight: 6kg/7kg/9.5kg
